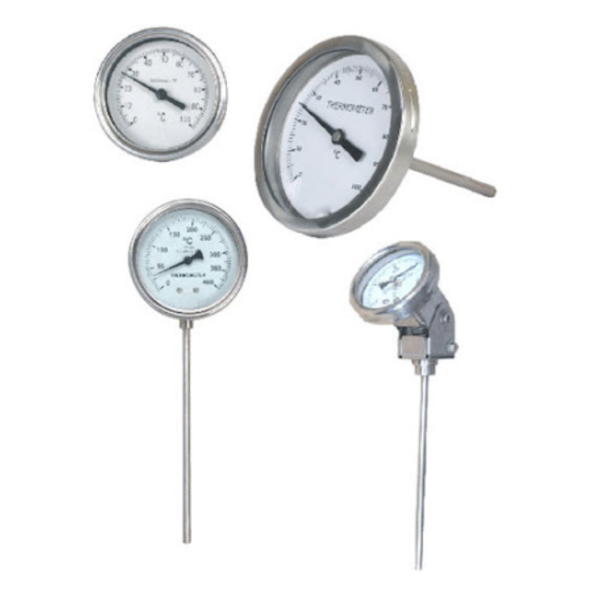

The Bimetal Thermometer functions by utilizing the expansion of a bimetallic strip caused by temperature fluctuations, leading to the deflection of the pointer. This type of thermometer is widely employed for temperature indication due to its avoidance of Mercury or Gas filling, resulting in decreased risk of hazards. Despite this, it maintains comparable levels of accuracy and repeatability in performance.
- Reliable Mechanism: Our Bimetal Thermometers operate by utilizing the expansion of a bimetal strip due to temperature changes, resulting in pointer deflection.
- Safe Solution: Avoids Mercury or Gas filling, enhancing safety without compromising accuracy or repeatability.
- Precision Performance: Offers accuracy and repeatability similar to Mercury or Gas-filled alternatives.
- Versatile Options: Available in Rigid Stem and Every Angle versions, with External Zero Adjustment for Every Angle model.
- Nominal Sizes: Choose from 63mm, 100mm & 150mm options.
- Accuracy Class: Provides +/- 1% of FSD (Full Scale Deflection) accuracy.
- Weatherproof Construction: SS304 Case & Bezel, compliant with IP-55 & 65 standards per IEC-60529. Alternatively, opt for Drawn Steel Black Powder Coated construction.
- Sensitivity: Offers 0.2% of Range Span sensitivity.
- Bourdon Material: Standard Chrome-Moly Steel, with optional Stainless Steel.
- Various Diameters: Select from 6mm, 8mm, 10mm (Standard), or 12mm (Optional) Bulb & Stem options.
- Connection Choices: Adjustable 1/2″ BSP/NPT connections, with additional options available.
- Ample Stem Length: Accommodates stems up to 1000mm in length.
- Flexible Mounting: Choose from Direct Bottom, Direct Back, Every Angle, or Flush Panel Back Entry.
- Micrometer Pointer: Equipped with Micrometer zero adjuster type pointer.
- Diverse Temperature Ranges: Standard ranges include 0-50, 100, 120, 150, 200, 250, 300, 400, 500, 550°C & Compound measurements.
| Type | Rigid Stem & Every Angle (External Zero Adjustment with Every Angle Version). |
| Nominal Size | 63mm, 100mm & 150mm. |
| Accuracy Class | +/- 1% of FSD. |
| Case & Bezel | SS304 Weather Proof to IP-55 & 65 as per IEC-60529, Drawn Steel Black Powder Coated. |
| Sensitivity | 0.2% of Range Span. |
| Bourdon Material | Chrome-Moly Steel (STD), Stainless Steel (Optional). |
| Case & Bezel | SS304 weather Proof to IP-55 & 65 as per IEC-60529, Drawn Steel Black Powder Coated. |
| Bulb & Stem Dia | 6mm, 8mm, 10mm (STD) & 12mm (Optional) |
| Connection | 1/2″ BSP/NPT Adjustable, Others Optional |
| Max. Stem Length | 1000mm |
| Mounting | Direct Bottom, Direct Back, Every Angle, Flush Panel Back Entry. |
| Pointer | Micrometer zero adjuster type. |
| Standard Ranges | 0-50, 100, 120, 150, 200, 250, 300, 400, 500, 550C & Compound |
OPTIONAL ACCESSORIES
- Shatterproof or Toughened Glass
- Maximum Pointer
- Silicon Filling
- Special Dial Design
- Thermowells
Our team of dedicated engineers is committed to crafting high-quality Bimetal Thermometers that consistently provide accurate temperature readings. If you’re searching for dependable temperature monitoring solutions, contact us today to meet your requirements.
