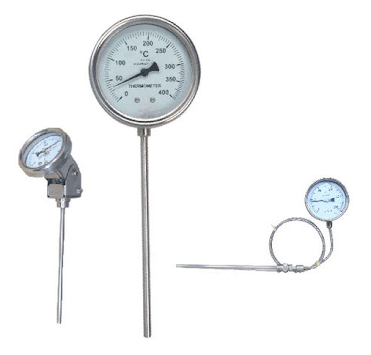

Experience accurate temperature measurement with our advanced Mercury/Gas Filled Dial Thermometers. Operating on the principle of mercury expansion within the bulb, which then deflects the bourdon tube, these thermometers offer reliable temperature readings. The resulting deflection is efficiently transmitted to the pointer through the movement mechanism, producing a linear scale. This design ensures impeccable scale readings across the entire range, making these thermometers an optimal choice for customers requiring precise measurements.
Our Thermometers adhere to international standards including EN-13190, BS 5235, and ASME B 40.3, guaranteeing their accuracy and quality.
Specifications:
- Type: Available in Rigid Stem, Every Angle, and Distant variations (Capillary length up to 15 meters).
- Nominal Size: Choose from 100mm and 150mm options.
- Accuracy Class: Achieves +/- 1% of Full Scale Deflection (FSD) accuracy.
- Sensitivity: Provides a sensitivity of 0.2% of Range Span.
- Bourdon Material: Built with Chrome-Moly Steel (standard), optional Stainless Steel available.
- Case & Bezel: Constructed from SS304, offering Weatherproof protection to IP-55 & 65 as per IEC-60529, with Drawn Steel Black Powder Coating.
- Bulb & Stem Dia: Select from 6mm, 8mm, 10mm (standard), or 12mm (optional) diameters.
- Connection: Equipped with 1/2″ BSP/NPT Adjustable connection, with other options available.
- Max. Stem Length: Offers a maximum stem length of 2000mm.
- Mounting: Suitable for Direct Bottom, Direct Back, Surface Bottom, Flush Panel Back entry (applicable for Capillary type gauges only).
- Pointer: Features a Micrometer zero adjuster type pointer.
- Capillary Types: Choose from a variety including steel capillary covered with copper, AISI 304 ss tube, AISI 316 ss tube, Flexible Armouring, or PVC Cover.
- Standard Ranges: Available in a range of measurements, from 0-50°C to 600°C, with the added capability of measuring up to -38°C on the negative side.
| Type | Rigid Stem, Every Angle & Distant (Capillary-Maximum up to 15 meters). |
| Nominal Size | 100mm, 150mm |
| Accuracy Class | +/- 1% of FSD |
| Sensitivity | 0.2% of Range Span |
| Bourdon Material | Chrome-Moly Steel (STD), Stainless Steel (Optional). |
| Case & Bezel | SS304 Weather Proof to IP-55 & 65 as per IEC-60529, Drawn Steel Black Powder Coated. |
| Bulb & Stem Dia | 6mm, 8mm, 10mm (STD) & 12mm (Optional) |
| Connection | 1/2″ BSP/NPT Adjustable, Others Optional |
| Max. Stem Length | 2000mm |
| Mounting | Direct Bottom, Direct Back, Surface Bottom, Flush Panel Back entry (Surface Bottom Applicable for Capillary type gauges only) |
| Pointer | Micrometer zero adjuster type |
| Capillary Types | a) Inner steel capillary covered with copper tube |
| b) Inner steel capillary covered with AISI 304 ss tube | |
| c) Inner steel capillary covered with AISI 316 ss tube . |
|
| d) Flexible Armouring | |
| e) PVC Cover | |
| Standard Ranges | 0-50, 60, 100, 120, 150, 200, 250, 300, 400, 500, 600°C & Compound Maximum Measurement on Negative Side – 38°C |
Optional Accessories:
- Shatterproof or Toughened Glass
- Electric Contact
- Maximum Pointer
- Glycerin or Silicon Filling
- Vacuum Protection
- Special Dial Design
- Thermowells
Our Mercury/Gas Filled Dial Thermometers excel in quality and precision, conforming to the highest industry standards. Designed to consistently provide accurate readings, these thermometers are a reliable choice for your temperature measurement needs. Reach out to us today to acquire top-notch Mercury/Gas Filled Dial Thermometers that ensure accurate and dependable results.
