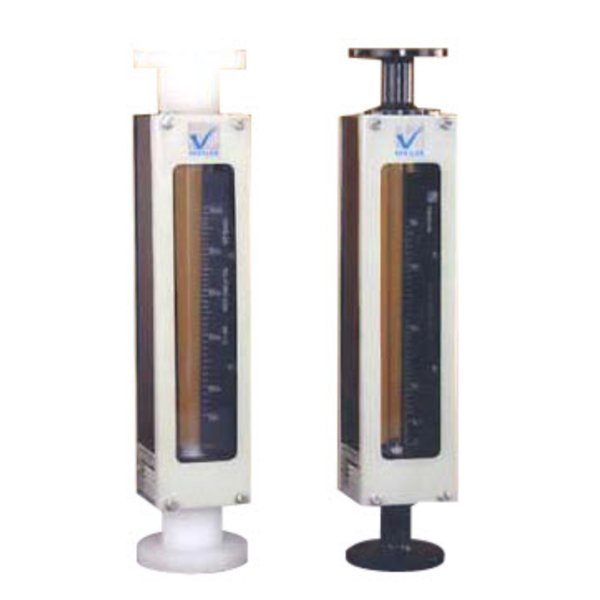

Glass Tube Rotameter

Glass Tube Rotameter

Our Glass Tube Rotameters are precision-engineered flow measurement devices designed to provide accurate and visual monitoring of fluid flow rates. With transparent glass tubes, these instruments offer clear visibility of the fluid movement, making them ideal for a wide range of applications across industries such as chemical, pharmaceutical, water treatment, and more. Experience reliable and intuitive flow measurement with our Glass Tube Rotameters.

Introducing Our Glass Tube Rotameter – Accurate Flow Measurement Made Effortless!

Features:

  • Accuracy: Achieve precise measurements with an impressive accuracy of +/- 2% of full scale.
  • Rangeability: Experience versatility with a rangeability of 10:1, catering to a wide spectrum of flow rates.
  • Repeatability: Ensure consistent results with a repeatability rate of 0.5%.
  • Flexible Connection Orientations: Adapt to your setup’s needs with various connection orientations: top & bottom, rear, bottom & rear, and rear & top.
  • Interchangeable Tube: Swap tubes on-the-go, ensuring uninterrupted operations and efficient maintenance.
  • Detachable Scale: Customize your measurement units with a detachable scale displaying flow in your engineering units.
  • Standard Floats: Benefit from standard interchangeable floats for a given size, ensuring consistent performance.
  • Adjustable Packing Gland: Fine-tune performance with an adjustable packing gland.
  • Sturdy Construction: Built to endure line stress and vibration, our rotameters feature sturdy metallic construction.
  • Wide Flow Range: Choose from a broad selection of flow ranges, tailoring the instrument to your precise requirements.
  • Line Sizes: Available in sizes ranging from 1/2″ to 4″, accommodating maximum flows of up to 30000.
  • Optional Alarms: Enhance monitoring with optional high and low alarms for added convenience.

Material of Construction:

  • Glass Tube: Crafted from durable borosilicate glass for clear visibility and longevity.
  • Floats: Available in SS 304/SS 316/Teflon, with customization options upon request.
  • End Fittings: Choose from CS, MS, SS 304, SS 316, Rubber lined, or PTFE lined end fittings, threaded or flanged as per your requirements.
  • Packing: Neoprene/Teflon/Silicon/Viton packing for optimal sealing.
  • Frame: Standard MS/CS powder-coated frame, with optional SS upgrade.
  • Cover: Option of MS/Aluminum cover with safety glass or acrylic window.
  • Bolts: Reliable CS/SS 304/SS 316 bolts for secure assembly.
  • Gland Housing: Cast steel epoxy-painted gland housing for durability.

Experience the Excellence of Glass Tube Rotameters – Contact Us Today!

As trusted manufacturers and suppliers of Glass Tube Rotameters, we stand behind the quality and performance of our products. Join numerous companies who rely on us for their flow measurement needs. Contact us now to explore the benefits of our Glass Tube Rotameters firsthand.
