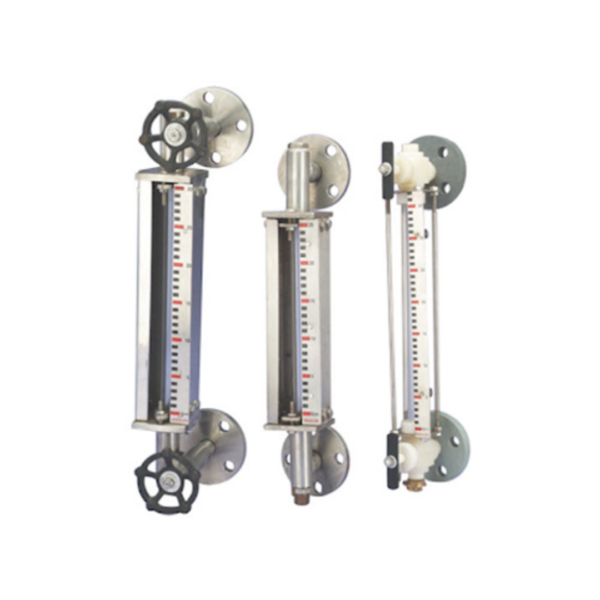

Widely recognized as a simple and reliable solution, this gauge excels in providing accurate level readings for both atmospheric and pressurized tank applications. Mounted parallel to the tank, forming a closed loop, the Tubular Level Gauge offers a local level indication by utilizing a transparent glass tube.
Crafted by Veksler, this gauge boasts a correct design, rugged construction, and precise manufacturing techniques, ensuring dependable performance and an extended service life. The use of H Grade Borosilicate glass tubes, available in 16/19/25 mm outer diameters, with Teflon Packing, guarantees clarity and durability. Notably, the tube can be removed online without disconnection from the vessel, facilitating maintenance.
| Construction | Tie rod or C-frame guards in MS/SS |
| Gauge | 16 mm/ 19 mm OD (normal liquids) & 25 mm OD (Viscous liquids) heavy walled borosilicate glass in single length of 1500 mm. |
| Packing | Neoprene, Silicon, Viton or PTFE to suit required temp./corrosive conditions. |
| Material | –MS, CS, SS304, SS316 & PP as standard. |
| Isolating Valves | Straight/Offset needle valve for integral type and diaphragm/Ball/needle valve for inline type. |
| C/C Distance | 1600 mm in single tube length. Extended range by coupling 2 or more tubes through a coupler. |
| Vessel Connection | Flanged, screwed or industrial fittings in vertical or Horizontal orientation./td> |
| Vent/Drain | ½” NPT Drain and ¾” Vent plug or valve as required. |
| Visibility | approx 150 mm less than the CC distance³ |
| Max. Pressure | 0 – 12 kg/cm² |
| Max. Temperature | 0 – 200ºC depending upon gland packing/gasket material |
| Scale | Alluminium/Stainless steel with LC 5 mm as standard LC of 1mm on request. |
| Glass Protector | 1 Slotted Al or MS pipe/Acrylic tube for tie rod construction and acrylic shields for C-frame construction, if required. |
Tubular Level Gauge Features:
- Choice of Tie Rod or C-Frame Construction.
- With or without isolating valve.
- Material integrity assured through strict compliance of chemical composition analysis in a Standard Laboratory.
- H Grade Borosilicate glass tube 16/19/25 mm outer dia with Teflon Packing.
- Glass tube an be removed online i.e. without disconnection from vessel
- Standard Connection: 1/2″ / 3/4″ / 1″ Flange drilled to ASA 150#, others on request
- Alluminium/SS scale with 5 mm resolution as standard and 1 mm on request.
- Drain Plug 1/2″ Vent Plug 3/4″ as std and drain/vent valve as optional
- Safety Ball check device(optional).
- Hydro test pressure: 12 KG/cm2, 100 Deg C max working temperature.
- Defrost/illuminator available on request.
- Tie Rod Construction is ‘light’ and permits 360ºC visibility.
- C-Frame construction is robust and permits observation from Front & Rear.
- Both constructions are available in integral or inline arrangements.
- High quality, H grade borosilicate glass tube in 16/19/25mm outer dia is used.
- Available in single length having c/c distance = 1600 mm. Extended lengths are provided by coupling several tubes or gauge assemblies in series
- Gland packing design provides tension free tube installation to achieve zero leakage. It also enables glass removal for replacement or cleaning without dismantling the gauge or disconnection from the vessel.
- Transparent Acrylic Plate mounted on C-Frame/Acrylic Pipe or slotted metallic pipe clamped on Tie Rod as glass protector can be provided if required, for additional safety to glass & personnel.
- Adjustable proximity/reed switch arrangement for level sensing with alarm relays.
- Construction Tie rod or C-frame guards in MS/SS
- Gauge 16 mm/ 19 mm OD (normal liquids) & 25 mm OD (Viscous liquids) heavy walled borosilicate glass in single length of 1500 mm.
- Packing Neoprene, Silicon, Viton or PTFE to suit required temp./corrosive conditions.
- Material –MS, CS, SS304, SS316 & PP as standard.
- Isolating Valves Straight/Offset needle valve for integral type and diaphragm/Ball/needle valve for inline type.
- C/C Distance 1600 mm in single tube length. Extended range by coupling 2 or more tubes through a coupler.
- Vessel Connection Flanged, screwed or industrial fittings in vertical or Horizontal orientation./td>
- Vent/Drain ½” NPT Drain and ¾” Vent plug or valve as required.
- Visibility approx 150 mm less than the CC distance³
- Max. Pressure 0 – 12 kg/cm²
- Max. Temperature 0 – 200ºC depending upon gland packing/gasket material
- Scale Alluminium/Stainless steel with LC 5 mm as standard LC of 1mm on request.
- Glass Protector 1 Slotted Al or MS pipe/Acrylic tube for tie rod construction and acrylic shields for C-frame construction, if required
Choose from Tie Rod or C-Frame construction, each offering distinct advantages. The tie rod construction, characterized as ‘light,’ provides 360ºC visibility, while the robust C-Frame construction permits observation from both the front and rear. These constructions are available in integral or inline arrangements, ensuring versatility in application.
The Tubular Level Gauge stands out for its high-quality borosilicate glass tube, available in various outer diameters, providing excellent visibility and endurance. The gland packing design ensures tension-free tube installation, achieving zero leakage and facilitating easy glass removal for replacement or cleaning without disconnecting from the vessel.
For additional safety, transparent acrylic plates or shields can be incorporated, and an adjustable proximity/reed switch arrangement for level sensing with alarm relays is available. With vessel connections in flanged, screwed, or industrial fittings, this gauge offers exceptional flexibility in orientation.
Trust VEKSLER’s expertise in manufacturing top-quality Tubular Level Gauges/Indicators. Contact our experienced engineers today for all your tubular level gauge/indicator requirements. Experience clarity, reliability, and precision with Veksler Tubular Level Gauges.
