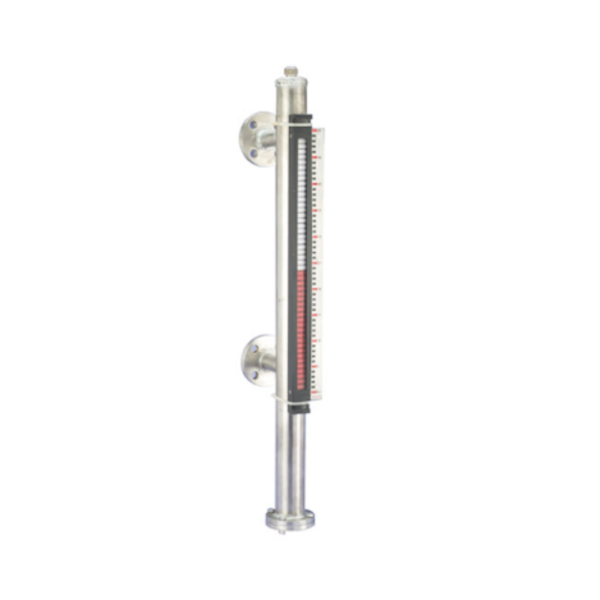

Introducing the Magnetic Level indicator by Veksler – a robust and versatile solution for precise liquid level indication in open or closed tanks. Crafted with excellence, our Level Indicators are designed to withstand high temperatures, pressure variations, and challenging environments where traditional glass components might pose safety concerns. With a focus on safety and accuracy, this instrument is a preferred choice for a diverse range of industries, including chemicals, pharmaceuticals, petrochemicals, refineries, and fuel storage.
The concept behind the magnetic Level Indicator is ingeniously simple yet effective. The cage, flanged to the tank, houses the magnetic floats. These floats interact with bi-color magnetic rollers, creating a distinctive red-to-white (or black-to-white) indication as the liquid level changes. This visual signal is not only reliable but also remains unaffected during power outages. The system offers a safe and gas-tight separation between the measuring and indicating components, ensuring accuracy and protection.
Key Specifications:
– Available in various metallurgies for floats, including SS316, Titanium, PVDF, Polypropylene, and PVC
– Options for single or multiple floats to suit application needs
– Flanged connection designed to ASA 150# standard or custom requirements
– Pressure ratings up to 20 Kg/cm² for SS and 3 Kg/cm² for PP, PVC, and PVDF, with higher ratings available
– Temperature capabilities of up to 450ºC for SS, 80ºC for PVDF, and 60ºC for PVC
– Specific gravity range of minimum 0.5
– Etched scale in cm on AI/SS material for accuracy
– Measuring accuracy of +/- 5 mm
| Float Cage Material | SS304, SS316, PTFE, PP, PVC, PVDF |
| Max. Centre to Centre Distance | 6000 mm, greater lengths on request |
| Connecting Flanges | According to DIN or ANSI B16.5 |
| Rated Pressure | 20 Kg/cm² for SS & 3 Kg for PP, PVC & PVDF Higher pressure rating can also be provided |
| Temperature of Liquids | 450ºC (Max.) for SS, 80ºC (Max.) for PVDF |
| Specific Gravity | 60ºC (Max.) for PVC, 50ºC (Max.) for PP Min. 0.5 |
| Scale | Graduated in cm, Aluminium or SS304 |
| Measuring Accuracy | +/- 5 mm |
| Fluid | Liquid with SG more than 0.5 |
| Indication | Red & white Rotating flappers/Drag/LED bar graph |
| Mounting | Side-Side/Top Mounted |
Our team of experienced engineers is dedicated to delivering top-notch Magnetic Level Indicators that cater to your specific requirements. Contact us today to explore our high-quality solutions that ensure accuracy, reliability, and safety in your liquid level measurement needs.
